10 AWG XHHW SOLID 600V 90C COPPER BUILDING WIRE

10 AWG XHHW SOLID 600V 90C COPPER BUILDING WIRE

10 AWG XHHW SOLID 600V 90C COPPER BUILDING WIRE

SKU: NNC18092X-1

Select a Gauge

10 AWG XHHW SOLID 600V 90C COPPER BUILDING WIRE

Availability: In stock

Min Length: 1 FT
Max Length: 1000000 FT
Price:
Regular price
$0.27 /FT
Sale price
$0.27/FT
Quantity must be 1 or more

Specification

10 AWG XHHW Solid 600v 90c Copper Building Wire

Allowable Ampacity for 10 AWG XHHW 600 V 90C Copper Building Wire:  30 Amps at 60ºC / 30 Amps at 75ºC / 30 Amps at 90ºC

Applications:

XHHW is a multi-purpose electrical wire with cross-linked high heat water-resistant insulation. The most common applications include raceways for branch circuit wiring, conduits, services, and feeders. It is also used as a building wire. XHHW 2 is suitable for industrial applications due to its toughness and excellent resistance to chemicals. The electrical wire is suitable for temperatures up to 90°C in dry applications and 75 °C in wet applications, with a voltage rating of 600 volts.

Also Known As:

 10 XHHW RW90 Copper Building Wire, 10 XHHW Cable, 10 XHHW Direct Burial Cable, 10 XHHW Service Wire, 10 XHHW Copper Wire.

Standards:

  • Underwriters Laboratories Standard UL-44
  • ASTM Stranding Class B3, B8, B787
  • Federal Specification A-A-59544
  • Canadian Standards Association C22.2 No. 38
  • NEMA WC-70/ICEA S-95-658
  • NFPA 70: National Electrical Code (NEC)
  • UL 1685-FT4/IEEE 1202 (70,000 Btu/hr) Flame Test (1/0 AWG and larger)
  • ICEA T-29-520 (210,000 Btu/hr) Flame Test
  • ARRA 2009; Section 1605 ""Buy American"" Compliant

Construction:

Conductor:

The cable has a solid uncoated copper conductor per ASTM-B3.

Insulation:

The cable is insulated with a cross-linked polyethylene jacket (XLPE) per UL-44 that serves as a protective armor to the conductors. It is flame-retardant and resistant to abrasion, corrosion, moisture, dryness, chemicals, and heat.

Specifications:

  • Size AWG: 10
  • Weight: 0.039 lbs per ft
  • Number of Strands: Solid
  • Outside Diameter: 4.39 mm / 0.173 inches
  • Insulation: XLPE
  • Insulation Thickness: .76 mm / 0.030 inches

*Data provided on this page is subject to change based on different manufacturers' variances

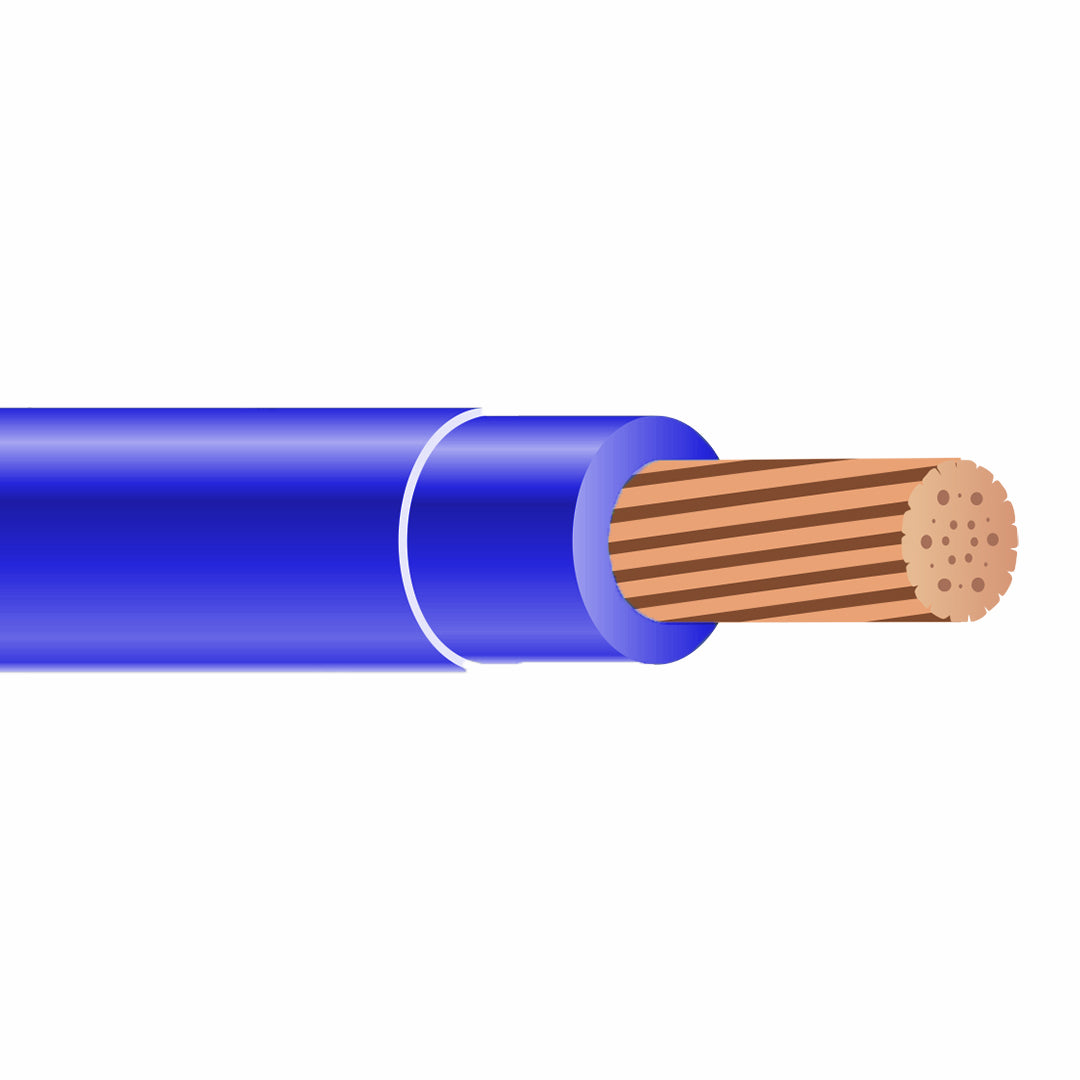

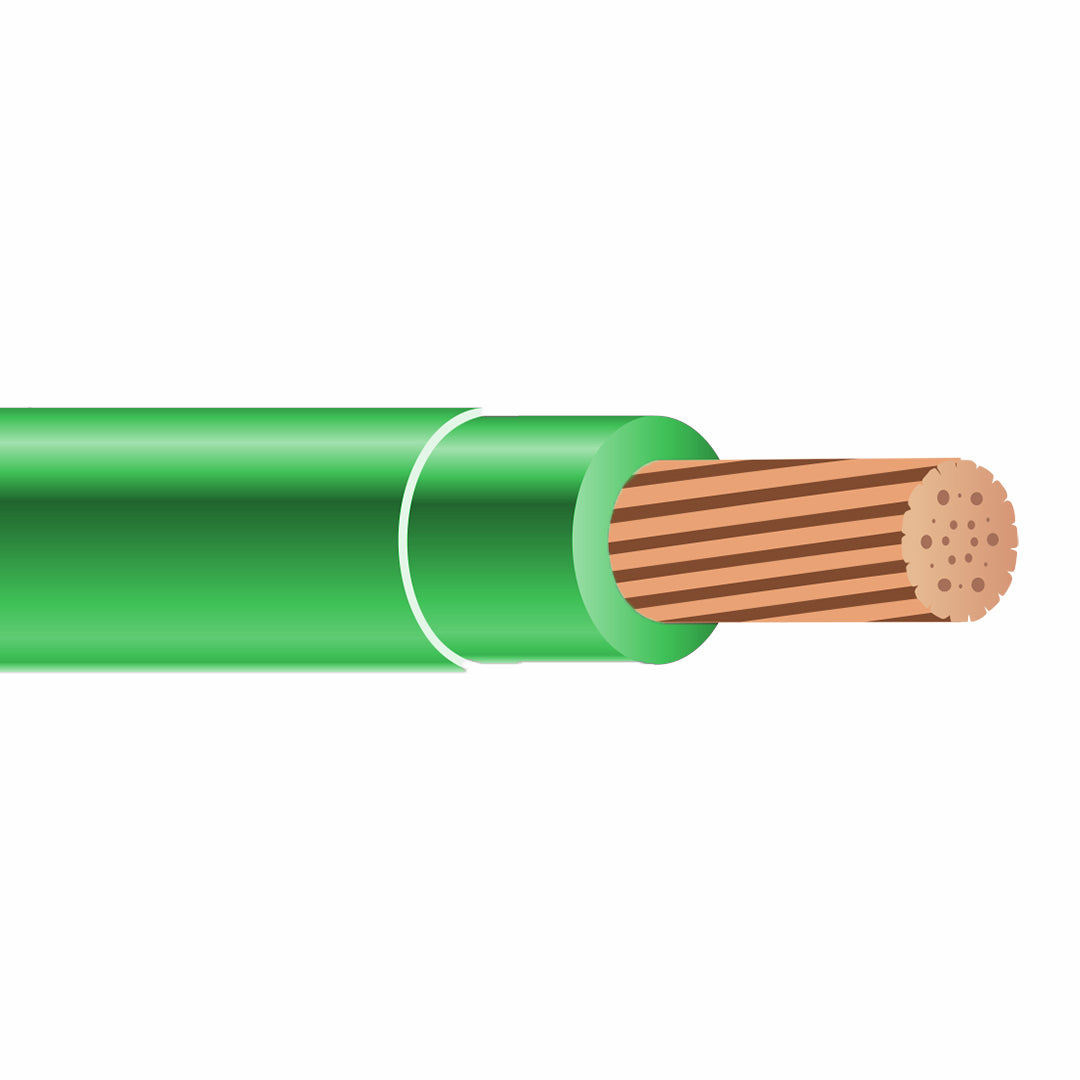

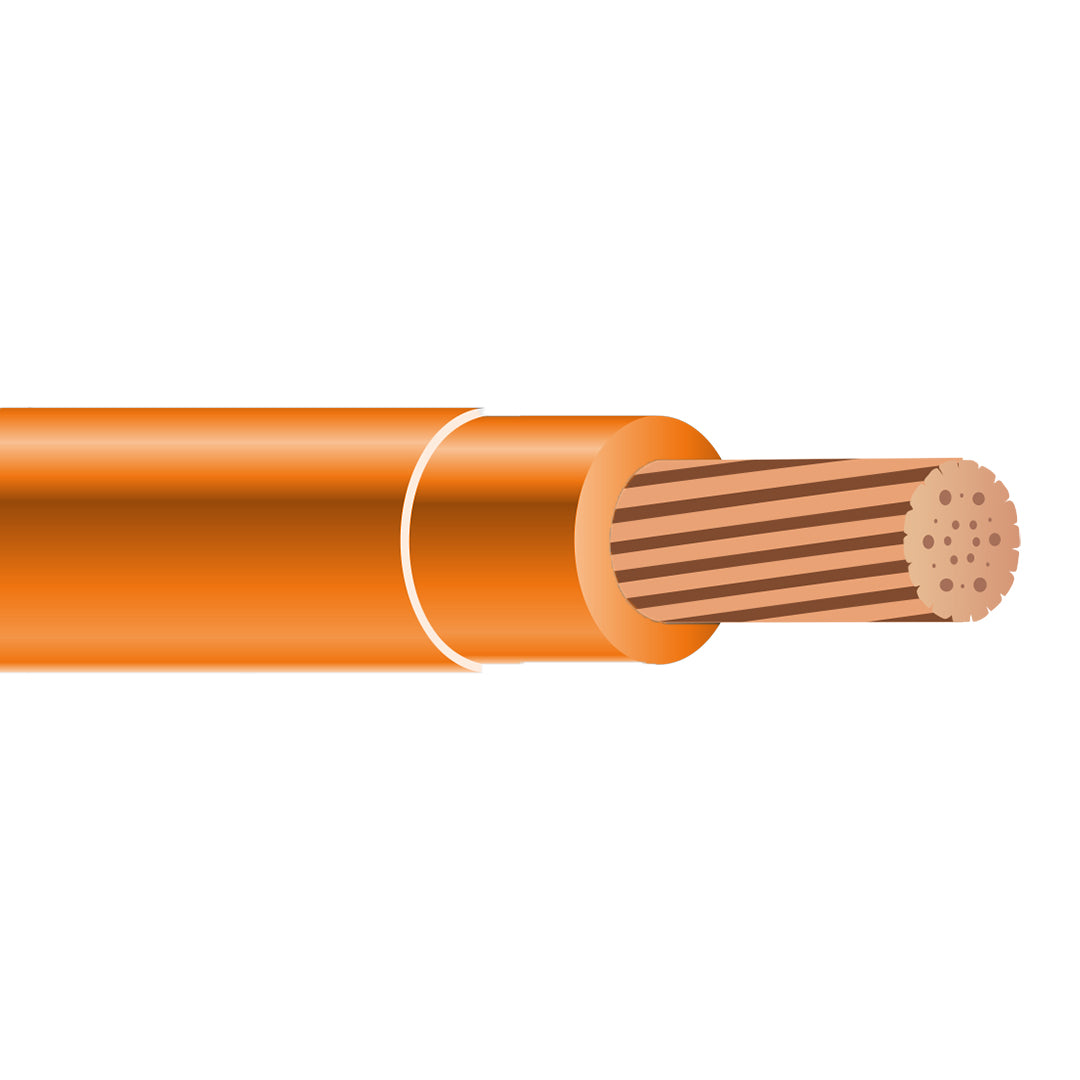

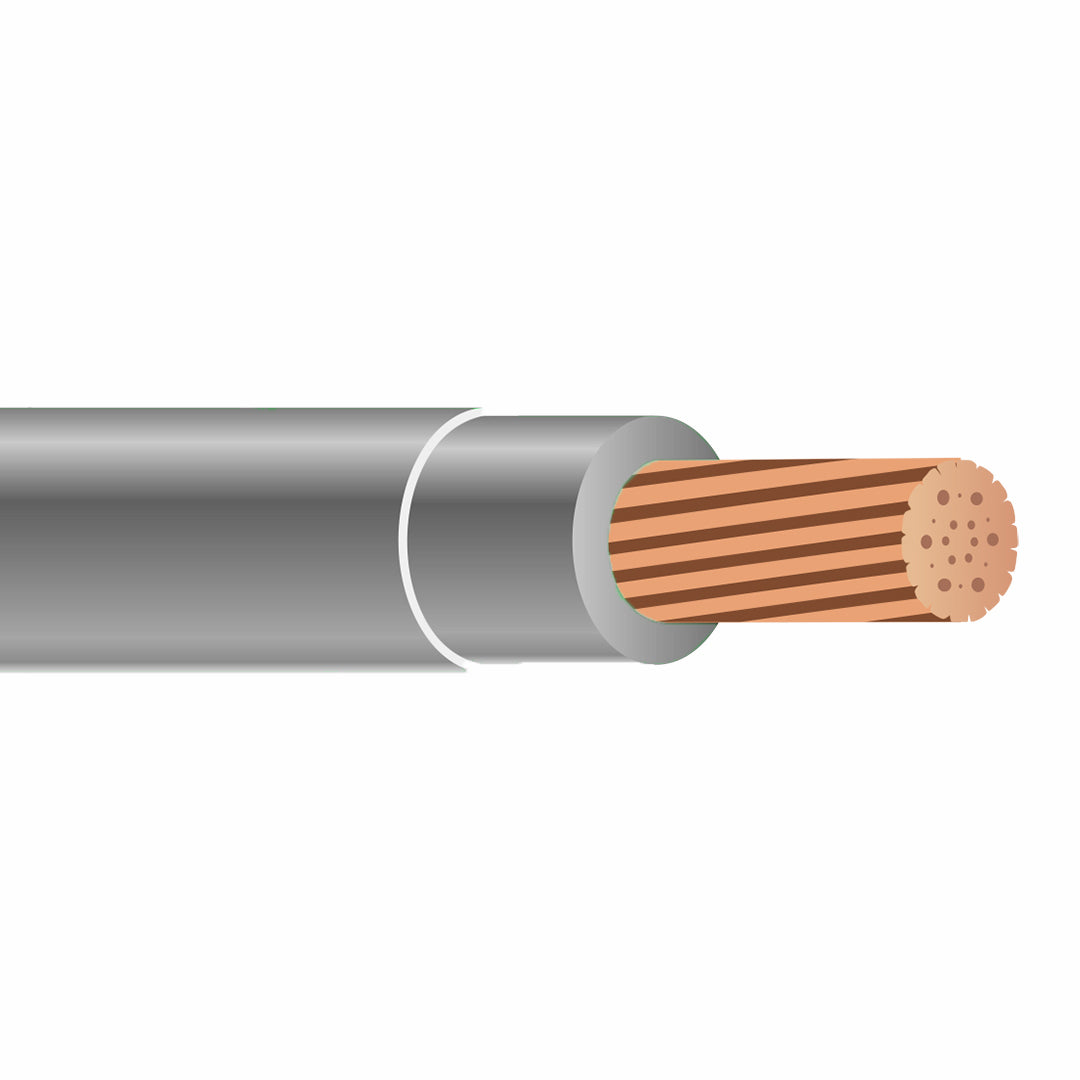

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
