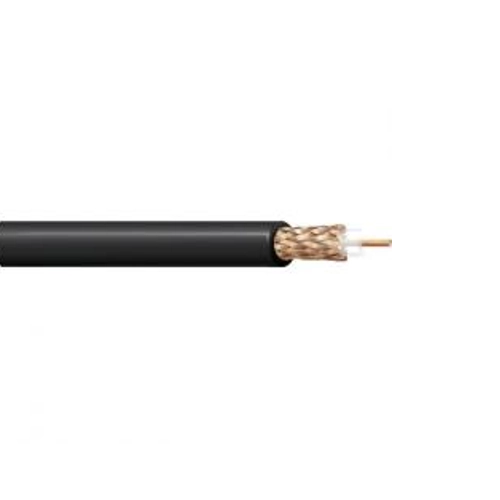

Belden 8241A 23 AWG Solid RG-59/U 75 Ohm Coax Cable

Belden 8241A 23 AWG Solid RG-59/U 75 Ohm Coax Cable
Roll over image to Zoom

Belden 8241A 23 AWG Solid RG-59/U 75 Ohm Coax Cable

SKU: NNC32666X

Select a Gauge

Belden 8241A 23 AWG Solid RG-59/U 75 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
Regular price
$1.46
Sale price
$0.97 /FT 33% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

Belden 8241A 23 AWG Solid RG-59/U 75 Ohm Coax Cable

Applications:

The Belden audio cable is an electrical wire used for multimedia and lighting automation and is safe for indoor use. The operating temperatures and voltage ratings of this electrical wire differ according to the product family.

Also Known As:

23 awg belden audio cable, 23 awg belden audio wire, 23 awg belden instrumentation cable, 23 awg belden analog cable, 23 awg belden video cable.

Standards:

  • Environmental Suitability: Indoor/Outdoor, Indoor
  • Sustainability: CA Prop 65
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Construction:

Conductors:

Belden wire may have different numbers of conductors that are drawn and annealed by the company and made of either solid or stranded copper.

Insulation:

Insulation is very important in any electrical cable since it prevents the electrocution of cable handlers. Belden cable’s insulation is made by the company, therefore offering a wide range of options, including Polyethylene, Polyvinyl Chloride (PVC), and Polypropylene insulation. Datalene and Teflon® Insulated Plenum insulation is also available.

Jacket:

The range of Belden wire jackets is quite wide and includes the following materials: Polyvinyl Chloride, Polyethylene, Polyurethane, Teflon®, Tefzel®, Neoprene, EPDM, Silicone rubber, and Natural rubber.

Shield:

Belden wire shields utilize techniques and innovations developed by the company and include the following variety: Foil shields (Beldfoil®, Duofoil®), Braid shields, Spiral/Serve shields, and Combination shields.

Armor:

Belden wire armor protects the cable and is made of aluminum or interlocking steel.

Details:

  • Max. Operating Temperature: -40°C to 75°C
  • Max. Voltage Rating: 300V RMS
  • Conductor Material: Bare Copper Covered Steel
  • Insulation Material: Polyethylene (Foam)
  • Jacket Material: PVC
  • Shield: Bare copper braid shields (95% and 80% coverage)

Specifications:

  • Size (AWG): 23
  • Number of Conductors: 1
  • Stranding: Solid
  • Number of Pairs: 0
  • Nominal Conductor Diameter (inch): 0.023
  • Nominal Insulation Thickness (inch): 0.146
  • Nominal Conductor DCR (Ohm/1000ft): 49.0
  • Nominal Capacitance (pF/ft): 20.5
  • Impedance (Ohm): 75
  • Bulk Cable Weight (lbs/1000ft): 39.0

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
