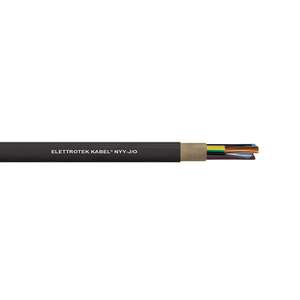

14 AWG 3C Bare Copper Unshielded PVC J Type NYY-J/O 0.6/1KV Power Low Voltage Cable
Allowable Ampacity for 14 AWG 3C Bare Copper Unshielded PVC J Type NYY-J/O 0.6/1KV Power Low Voltage Cable: 100 Amps
About:
This cable features a single conductor (3C) made from bare copper, utilizing a 14 American Wire Gauge (AWG ) size, which is a standard gauge for conducting electrical power in low voltage applications. It is insulated with PVC and designed for a voltage rating of 0.6/1KV (600/1000 Volts), suitable for low voltage power distribution. The "J" type in NYY-J/O indicates that this cable includes a green-yellow earth (grounding) wire, whereas the "O" type (without the "J") does not.
Also Known As:
• 14 AWG Single Core Bare Copper Power Cable
• PVC Insulated NYY-J Cable
• Unshielded Low Voltage Cable
Application:
• Residential and commercial building wiring for power and lighting circuits.
• Fixed installations in open air, underground, in water, within facilities, where mechanical damages are not expected.
• Used in control and power circuits in power plants, industries, and distribution networks.
• Suitable for outdoor and indoor use, in cable ducts, and for direct burial applications where a higher degree of electrical insulation is required.
Standards:
• Typically adheres to VDE standards, ensuring high-quality manufacturing and safety for installation in various environments.
• Meets IEC standards for low-voltage power cables, ensuring compatibility and safety in international applications.
• May also meet national standards depending on the country of manufacture and intended use, ensuring it is suitable for specific local requirements.
Construction:
• Conductor: Solid Or Stranded Red Copper Conductor Cl.1 Or 2, Acc. To Iec 60228 Din Vde 0295
• Insulation: Pvc Type Div4
• Colour Cores: Acc. To Din Vde 0293-308, Hd 308 S2 From 6 Cores Black Cores With Consecutive Numbers Acc. To En 50334; Green-yellow Earth-wire From 3 Cores
• Stranding: Cores Stranded Concentrically
• Outer Sheath: Black (Ral 9005), Pvc Type Dmv5
Features:
• According To Iec 60502-1, Din Vde 0276-603
• Suitable In Moist And Dry Environements, Outdoor, In Cable Ducts,
• Underground And In Water
Ozone Resistance
Uv Resistance
• Re: Circular Solid Conductor
• Rm: Circular Stranded Conductor
• Sm: Sector-shaped Stranded Conductor
• Se: Sector-shaped Solid Conductor
Specifications:
• AWG No: 14
• No.of cores x cross section n x mm2: 3 x 2,5 re
• Outer-Ø ca.mm ± 10%: 12,7
• Copper weight kg/km: 72
• Nominal voltage: Uo/U 0,6/1 kV
• Test voltage: 4 kV
• Temperature range: Fixed laying: - 40 oC up to + 70 oC, Flexible application: - 5 oC up to + 50 oC
• Max short circuit temperature:+ 160 o C
• Min. bending radius: Single core: 15 x d. Multi cores: 12 x d
• Cable weight approx. kg/km: 260
• Part Number: 46180G72031M25
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
